adhesive |
Description |
mixed Color |
Ratio |
Viscosity (cps) |
Working time (minutes) |
Fixture time (minutes) |
|
PU-0330 |
Non sagging, Fast curing |
Black |
2:1 |
A: 60000~90000 |
3 |
30 |
|
PU-0760 |
Non sagging, Fast curing |
Black |
2:1 |
A: 60000~90000 |
7 |
60 |
|
PU-0208 |
Non sagging, Fast curing |
Black |
4:1 |
A: 60000~90000 |
2 |
8 |
|
PU-1025 |
Non sagging, Fast curing |
Black |
4:1 |
A: 60000~90000 |
10 |
25 |
|
PU-2030 |
Non sagging, Fast curing |
Black |
1:1 |
A: 60000~90000 |
20 |
30 |
General Description
UVALAM PU-0760 is is a two-component 1:1, fast curing PU (polyurethane) structure adhesive.
UVALAM PU-0760 is with very high mechanical performances for structure bonding of composites, thermoplastics, metal, wood, concrete, fibrocement, etc.
• Thixotropic (Non-sag).
• Very fast cure at room temperature.
• Good resistance to temperature, humidity and weathering.
• Very high mechanical resistance.
UVALAM GP-0416 is supplied in 50ml or 400ml side-by-side 1:1 cartridge.
PRODUCT CHARACTERISTICS
Chemical Class: Polyurethane
Appearance(mixed): Gray
% Solids by Volume: 100
Shelf life, months: 12
TYPICAL PROPERTIES OF UNCURED MATERIALS
Part A Part-B
Viscosity at 24° C , cps 60,000 – 90,000 60,000 – 90,00
Color Mlky Black
Density at 24° C, g/ cm3 1.25 1.8
Mix Ratio by Volume 1.0 1.0
Mix Ratio by Weight 1.0 1.52
Thixotropic Index 3.3 2.3
Working time @ 25ºC, mins: 7-10
Fixture time @ 25ºC, hrs: 1
Full cure @ 25ºC, days: 7
TYPICAL PROPERTIES OF CURED MATERIALS
Fully Cured Product (7 days @ 25 ºC)
|
Density(cured), g/cm3 |
1.55 |
|
Coefficient of thermal conductivity, ASTM E1461, W/(m·K) |
0.5 |
|
Dielectric strength ASTM D149, kV/mm |
13 |
|
Shore D hardness, ASTM D2240 |
70 |
|
Tensile strength, ASTM D638, MPa |
30 |
|
E modulus, ASTM D638, MPa |
2650 |
|
Elongation at break, ASTM D638 |
5~10% |
Bonding strength / Shear strength
ASTM D1002, MPa
|
Stainless steel |
12.90 mpa |
|
Galvanized steel, |
13.90 mpa |
|
Al alloy 3003 |
10 mpa |
|
Al alloy 6061 |
11 mpa |
|
Al |
10 mpa |
|
PET film |
1.5 mpa |
TYPICAL CURING PROCESS
7 days @ 25 ℃ . For ultimate chemical and thermal resistance, allow parts to cure overnight at room temperature, then follow with 2hrs of 80℃ exposure.

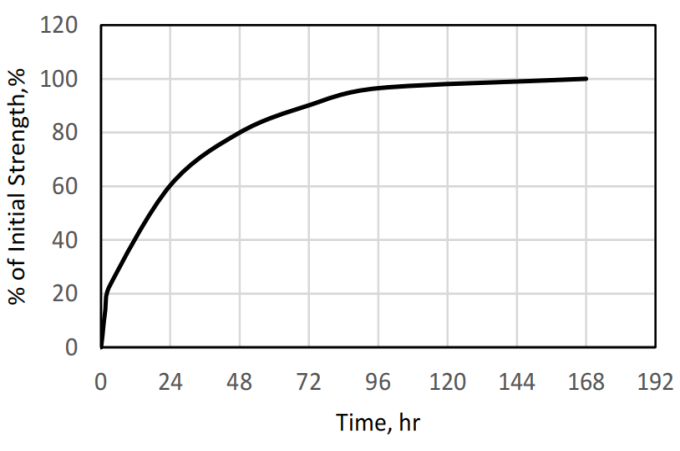

Tensile Shear Strength Development on Al3003
SURFACE PREPARATION
The surfaces must be dry, degreased and dust free.
The treatment may be varied according the substrate (paper sanding, degreasing, Corona treatment, etc.)
APPLICATION:
1. Apply mixed PU directly to one surface in an even film or as a bead.
2. Assemble with mating part within recommended working time.
3. Apply firm pressure between mating parts to minimize any gap and ensure good contact (a small fillet should flow out the edges to display adequate gap fill)
Effect of Temperature:
Application of adhesive at temperatures between 65°F (18°C) and 85°F (30°C) will ensure proper cure. Temperatures below 65°F (18°C) or above 85°F (30°C) will slow down or increase cure rate significantly. Temperature affects viscosity of Parts A and B of this adhesive. To ensure
consistent dispensing in meter-mix equipment, adhesive and activator temperatures should be held reasonably constant throughout the year. Adhesive in cured state behaves differently at elevated and low temperatures.
Storage & Shelf life:
The shelf life of PU-0760 stored at 10OC-30OC is 12 months from the date of manufacture.
Store the unopened product in a cool, dry, well ventilated location away from sources of heat. Optimal storage temperatures should range between 10 OC and 30 OC .
Product removed from the containers during use should not be returned to original containers in order to avoid potential contamination.
📞📞📞
